Kettle与Hadoop(九)提交Spark作业

实验目的:
配置Kettle向Spark集群提交作业。

实验环境:
Spark History Server:
172.16.1.126

Spark Gateway:
172.16.1.124
172.16.1.125
172.16.1.126
172.16.1.127

PDI:
172.16.1.105

Hadoop版本:CDH 6.3.1
Spark版本:2.4.0-cdh6.3.1
PDI版本:8.3

Kettle连接CDH参见“https://wxy0327.blog.csdn.net/article/details/106406702”。配置步骤:
1. 将CDH中Spark的库文件复制到PDI所在主机


-- 在172.16.1.126上执行
cd /opt/cloudera/parcels/CDH-6.3.1-1.cdh6.3.1.p0.1470567/lib/spark
scp -r * 172.16.1.105:/root/spark/

2. 为Kettle配置Spark
以下操作均在172.16.1.105以root用户执行。
(1)备份原始配置文件

cp spark-defaults.conf spark-defaults.conf.bak
cp spark-env.sh spark-env.sh.bak

(2)编辑spark-defaults.conf文件.

vim /root/spark/conf/spark-defaults.conf

内容如下:

spark.yarn.archive=hdfs://manager:8020/user/spark/lib/spark_jars.zip
spark.hadoop.yarn.timeline-service.enabled=false
spark.eventLog.enabled=true
spark.eventLog.dir=hdfs://manager:8020/user/spark/applicationHistory
spark.yarn.historyServer.address=http://node2:18088

(3)编辑spark-env.sh文件

vim /root/spark/conf/spark-env.sh

内容如下:

#!/usr/bin/env bash

HADOOP_CONF_DIR=/root/data-integration/plugins/pentaho-big-data-plugin/hadoop-configurations/cdh61
SPARK_HOME=/root/spark

(4)编辑core-site.xml文件

vim /root/data-integration/plugins/pentaho-big-data-plugin/hadoop-configurations/cdh61/core-site.xml

去掉下面这段的注释:

<property>
  <name>net.topology.script.file.name</name>
  <value>/etc/hadoop/conf.cloudera.yarn/topology.py</value>
</property>

提交Spark作业:
1. 修改PDI自带的Spark例子


cp /root/data-integration/samples/jobs/Spark\ Submit/Spark\ submit.kjb /root/big_data/

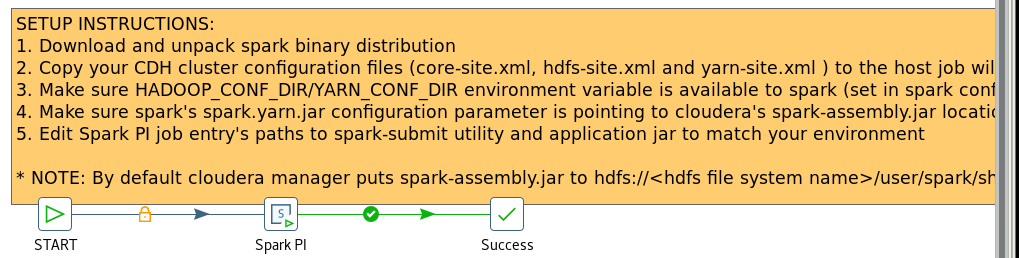

在Kettle中打开/root/big_data/Spark\ submit.kjb文件,如图1所示。

图1

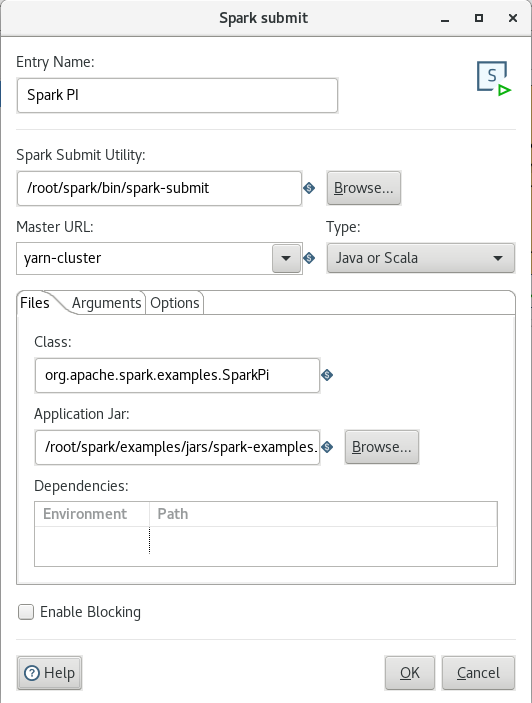

编辑Spark Submit Sample作业项,如图2所示。

图2

2. 保存行执行作业

日志如下:

2020/06/10 10:12:19 - Spoon - Starting job...
2020/06/10 10:12:19 - Spark submit - Start of job execution
2020/06/10 10:12:19 - Spark submit - Starting entry [Spark PI]
2020/06/10 10:12:19 - Spark PI - Submitting Spark Script
2020/06/10 10:12:20 - Spark PI - Warning: Master yarn-cluster is deprecated since 2.0. Please use master "yarn" with specified deploy mode instead.
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO client.RMProxy: Connecting to ResourceManager at manager/172.16.1.124:8032
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO yarn.Client: Requesting a new application from cluster with 3 NodeManagers
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO conf.Configuration: resource-types.xml not found
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO resource.ResourceUtils: Unable to find 'resource-types.xml'.
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO yarn.Client: Verifying our application has not requested more than the maximum memory capability of the cluster (2048 MB per container)
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO yarn.Client: Will allocate AM container, with 1408 MB memory including 384 MB overhead
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO yarn.Client: Setting up container launch context for our AM
2020/06/10 10:12:21 - Spark PI - 20/06/10 10:12:21 INFO yarn.Client: Setting up the launch environment for our AM container
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO yarn.Client: Preparing resources for our AM container
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO yarn.Client: Source and destination file systems are the same. Not copying hdfs://manager:8020/user/spark/lib/spark_jars.zip
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO yarn.Client: Uploading resource file:/root/spark/examples/jars/spark-examples_2.11-2.4.0-cdh6.3.1.jar -> hdfs://manager:8020/user/root/.sparkStaging/application_1591323999364_0060/spark-examples_2.11-2.4.0-cdh6.3.1.jar
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO yarn.Client: Uploading resource file:/tmp/spark-281973dd-8233-4f12-b416-36d28b74159c/__spark_conf__2533521329006469303.zip -> hdfs://manager:8020/user/root/.sparkStaging/application_1591323999364_0060/__spark_conf__.zip
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO spark.SecurityManager: Changing view acls to: root
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO spark.SecurityManager: Changing modify acls to: root
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO spark.SecurityManager: Changing view acls groups to:
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO spark.SecurityManager: Changing modify acls groups to:
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users  with view permissions: Set(root); groups with view permissions: Set(); users  with modify permissions: Set(root); groups with modify permissions: Set()
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO conf.HiveConf: Found configuration file file:/root/data-integration/plugins/pentaho-big-data-plugin/hadoop-configurations/cdh61/hive-site.xml
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO security.YARNHadoopDelegationTokenManager: Attempting to load user's ticket cache.
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO yarn.Client: Submitting application application_1591323999364_0060 to ResourceManager
2020/06/10 10:12:22 - Spark PI - 20/06/10 10:12:22 INFO impl.YarnClientImpl: Submitted application application_1591323999364_0060
2020/06/10 10:12:23 - Spark PI - 20/06/10 10:12:23 INFO yarn.Client: Application report for application_1591323999364_0060 (state: ACCEPTED)
2020/06/10 10:12:23 - Spark PI - 20/06/10 10:12:23 INFO yarn.Client:
2020/06/10 10:12:23 - Spark PI -      client token: N/A
2020/06/10 10:12:23 - Spark PI -      diagnostics: AM container is launched, waiting for AM container to Register with RM
2020/06/10 10:12:23 - Spark PI -      ApplicationMaster host: N/A
2020/06/10 10:12:23 - Spark PI -      ApplicationMaster RPC port: -1
2020/06/10 10:12:23 - Spark PI -      queue: root.users.root
2020/06/10 10:12:23 - Spark PI -      start time: 1591755142818
2020/06/10 10:12:23 - Spark PI -      final status: UNDEFINED
2020/06/10 10:12:23 - Spark PI -      tracking URL: http://manager:8088/proxy/application_1591323999364_0060/
2020/06/10 10:12:24 - Spark submit - Starting entry [Success]
2020/06/10 10:12:24 - Spark submit - Finished job entry [Success] (result=[true])
2020/06/10 10:12:24 - Spark submit - Finished job entry [Spark PI] (result=[true])
2020/06/10 10:12:24 - Spark submit - Job execution finished
2020/06/10 10:12:24 - Spoon - Job has ended.

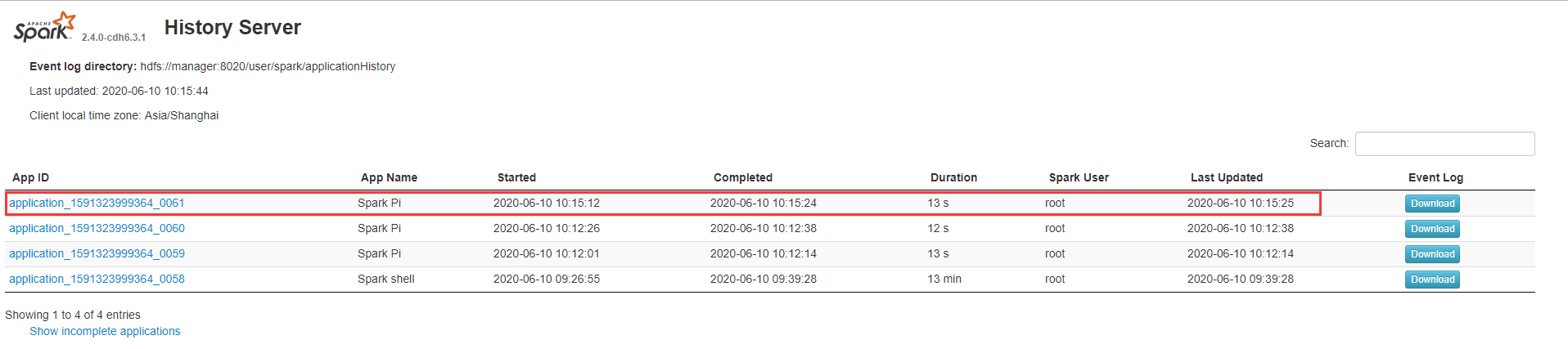

Spark History Server Web UI如图3所示。

图3

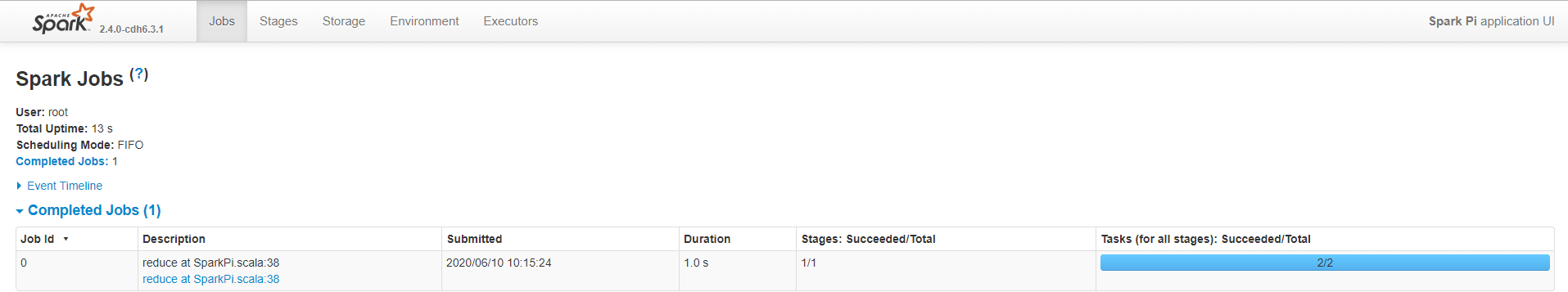

点击“application_1591323999364_0061”,如图4所示。

图4
